Membrane walls

Efficient sealing for dams and landfills

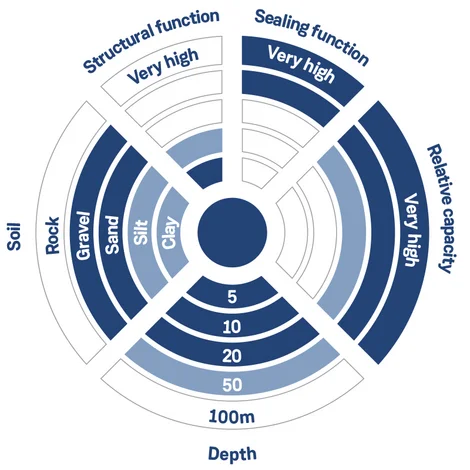

The membrane wall is a vertical sealing element that we mainly use for core seals in dams and for enclosing landfill sites. It has no static effect; however, it can also be used in conjunction with a statically effective support element (e.g. berm, sheet-pile wall, etc.) to enclose excavation pits.

 Implementation

A membrane-wall screed is vibrated and pushed into the ground using a high-frequency vibrator with simultaneous slurry grouting. A continuous sealing wall is created by lining up individual screed sections.

Examinations

  • Project-related suitability tests
  • On-site inspection and acceptance tests
  • Pumping tests

Applications

  • Sealing of dams, backwater areas of power plants
  • Sealing of excavation pits
  • Enclosure of landfills



Technical data

Membrane wall planks HEM 500 to 1000
Wall thickness 5 to 10 cm
K-value sealing suspension 10^8 10^10 m/s
Strength 0,5 to 2,0 N/mm²
Leveller up to 120 t



Your contacts for membrane walls

Special civil engineering Klaus Meinhard Technical Manager
Special civil engineering Christoph Holzer Commercial Manager
